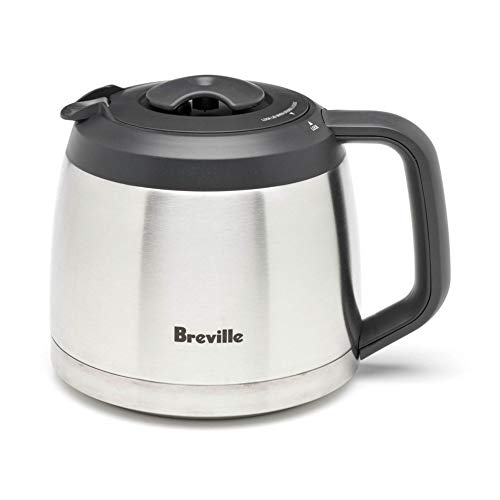

Breville Thermal Carafe Replacement: BDC600XL and Why the Lid Is Sold Separately
The Breville thermal carafe for the BDC600XL costs more than most whole drip machines, so check what has actually failed first. The BDC600XL/358 lid is sold separately and fails far more often than the flask - its seal hardens and the brew-through valve stops closing, which mimics a dead vacuum flask exactly. Fill with hot water, fit the lid, wait two hours: still hot means you only need the lid.
Does it fit your machine?
Match your model number exactly — the code on the rating label, not the name on the front of the machine.
| Model | Notes |
|---|---|
| Breville BDC600XL YouBrew | Full thermal carafe, or the /358 lid on its own. |
| Breville Precision Brewer thermal models | Same brew-through lid design - check the base for the BDC600XL reference. |
| Breville glass-carafe models | Different part entirely. A thermal carafe will not seat on a hotplate machine. |
Your model is not on this list. Do not assume it fits — send us the model number and we will check it.
OEM or aftermarket?
The Breville Precision Brewer and the BDC600XL YouBrew both use a stainless thermal carafe rather than a glass jug on a hotplate, and that changes the replacement maths completely. A Breville thermal carafe runs well over a hundred dollars – several times what a glass carafe costs for a comparable drip machine. It is worth being sure which part has actually failed before ordering.
The lid fails far more often than the flask
Breville sells the BDC600XL/358 carafe lid as its own part, and there is a reason for that. The brew-through lid contains the seal and the spring-loaded valve that the machine pushes open during brewing. The seal hardens, the valve stops closing, and the carafe stops holding temperature – which feels exactly like a dead vacuum flask.
The test that separates them: fill the carafe with hot water, fit the lid, and leave it two hours. If it is still hot, the vacuum flask is fine and you need the lid. If it has gone lukewarm with a good lid fitted, the flask has lost its vacuum and the whole carafe has to go.
Why there is no cheap aftermarket version
Glass carafes have a large aftermarket because a glass jug is simple to make. A double-walled vacuum flask with a brew-through valve calibrated to a specific machine’s flow rate is not, so almost nothing generic fits properly. The 4-cup espresso jugs that appear in searches for this part are for entirely different machines.
Before you replace the whole carafe
A thermal carafe that suddenly will not hold heat has usually been through a dishwasher. The heat cycle can breach the seal between the inner and outer walls, and once the vacuum is gone it cannot be restored. Breville’s own instruction is to hand-wash the carafe – this is the single most common way these get killed.
If yours is still under warranty and the flask has failed rather than the lid, contact Breville before buying. At this price the warranty claim is worth the phone call.
Weighing this against a new machine? Is a Breville Barista Express worth repairing? runs the four numbers that decide it.
Where to buy it
Breville
Breville Thermal Carafe Replacement: BDC600XL and Why the Lid Is Sold Separately
Paid link. Price shown is indicative — check the listing for the current price. We earn a commission at no extra cost to you.
Questions about this part
How do I tell whether I need the lid or the whole carafe?
Fill the carafe with hot water, fit the lid and leave it two hours. Still hot means the vacuum flask is fine and the lid seal is your problem. Lukewarm with a known-good lid fitted means the flask has lost its vacuum, and that cannot be repaired.
Why is there no cheap generic version?
A glass jug is simple to copy; a double-walled vacuum flask with a brew-through valve matched to one machine's flow rate is not. The cheap 4-cup espresso jugs that show up in these searches are for completely different machines.
Mine stopped holding heat right after I ran it through the dishwasher. Coincidence?
Almost certainly not. The dishwasher heat cycle can breach the seal between the inner and outer walls, and once the vacuum is lost it is gone for good. Breville specify hand-washing for exactly this reason.
Is it worth repairing at this price?
If the flask itself has failed and the machine is out of warranty, price the carafe against a new brewer before you commit - on the older BDC600XL the two numbers are closer than people expect.
